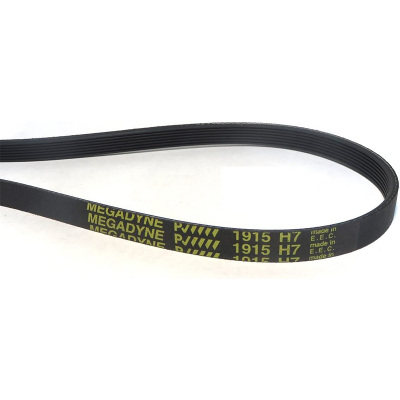

Fagor Megadyne 1915 H7 Washing Machine Belt 179066

1915 Mm Long Transmission Belt, Responsible For Transmitting The Movement From The Motor To The Tumble Dryer Drum. It Is Installed In Dryers Of The Brands Miele, Westpoint, Bluesky, Ariston, Indesit, Rommer, Kreft, Hotpoint, Creda, Ignis, Ikea, General Electric, Aya, Laden, Philips, Radiola, California, Whirlpool, Bauknetch, Among Many Other Brands. Groove: Type H / Teeth: 7 / Channels: 6 / Tooth Height: 2.5 Mm / Channel Dist.: 1.60 Mm. Assembly Instructions Once You Have Accessed The Back Of The Dryer: 1. Thread The Belt Through The Motor Pulley. 2. Then Bring The Strap, Through©The Tensioner*, To The Side Of The Drum (* There May Be 1 Tensioner, 2 Tensioners Or None). 3. And Start Turning Slowly And Hard. In Other Words, It Mounts Like A Bicycle Chain (See Photograph) Why Do The Straps Break? Most Dryer Belts Break For The Same Reason: Because They Burn. You'Ll Know That Your Dryer Belt Has Burned Out Because The Ends Of The Belt Have Been Slightly Curved Inward And The Inside Groove Has Been Recessed. To Prevent The Strap From Breaking Due To This Cause, It Is Advisable Not To Overload The Dryer Or Dry Shoes Or Sneakers. This Will Prevent The Bass Drum From Locking©Up While The Motor Pulley Is Spinning And Burning The Belt.
