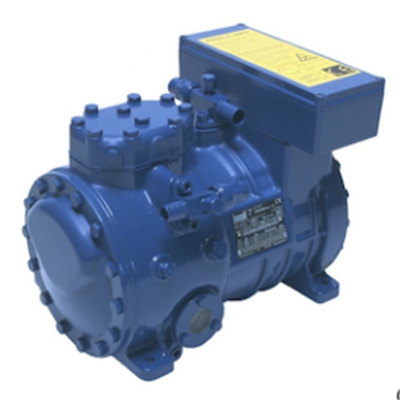

Frascold Q-5-33.1Y R134A R404A 400V 5Cv Low Medium High Temperature R32.66 M3/H Compressor
Rendimientos indicados según EN12900 con Temperatura de condensación +45 oC, gas aspirado +20oC. R448A y R449A: Para aplicaciones a Baja Temperatura es necesario enfriamiento adicional.
Advertising [ProductAdditionalInfo]
Technical Specifications©
R-134A - R-404 A Refrigerants
Compression Technology Semi-Hermetic©Piston
Working Range Low - Medium - High
Application Range -20°C Ã +12.5°C | -45°C Ã -5°C
Tension 400 / 3 / 50
Number Of Cylinders 4
Displacement 32.7 M³/H
Cooling Power -10ºc 9360 | 16030W
Int. Max. Amp. 14.4A
Motor Type 240V/3/50Hz Y - 400V/3/50Hz Y
Connex. Aspiration. Odf 1 3/8"
Connex. Discard. Odf 1 1/8"
Attachment Points 312 X 246Mm
Oil Charge 1.8L
Dimensions (L X W X H) 448 X 310 X 324Mm
Weight 79Kg
PK121067
- Refrigerante
- R134A
R448A
R449A
R450A
R452A
R513A - Tension
- Trifásica
- Compresion
- Baja-Media-Alta temperatura
