Boiler sensor

Boiler sensor

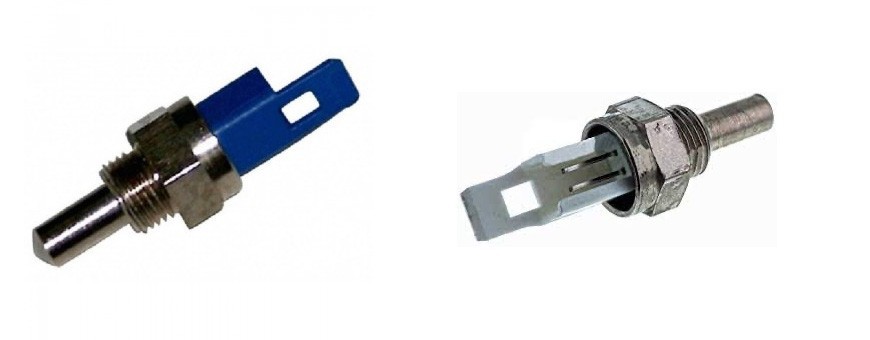

Junkers Ntc Zw23E/Ke Boiler Probe 8700400015
✅ NTC temperature sensor for Junkers boilers, used to measure and control water temperature in heating or domestic hot water circuits.
✅ Compatible with Junkers boiler models ZW23E and ZW23KE, as well as other units using this NTC sensor type.
✅ Technical function: the sensor sends temperature data to the electronic control board to regulate burner operation and maintain stable and safe temperatures.
✅ Replacement recommended when temperature errors appear, the boiler cycles irregularly, water is too cold or overheating occurs.
Sonda Temperatura Compatible con Baxi Compatible con Roca Acs Caldera Unidad 122155310
✅ Boiler domestic hot water temperature sensor. 1 unit. Also called safety probe – temperature limiter – immersion sensor – submerged thermistor – NTC probe, green colour.✅ Male thread 9, 8 mm. Bulb diameter 6 mm. Bulb length 11, 5 mm. Hexagonal head for 13 mm wrench.✅ compatible with Baxi/compatible with Roca. VICTORIA 20/20F VICTORIA 20 / 20 F RS20/20 RS20-20 BOILER R-20/20F LIMA 4, 6O GN NR-15/20 SP GN NR-15/20 SP GP. C.O. 122155310.✅ Primary circuit NTC probe The thermistor is an NTC (negative temperature coefficient) probe, located on the body of the three-way valve. It is a variable resistor made of semiconductor material, with the following behaviour: “as the temperature it is exposed to changes, its resistance will vary inversely, and vice versa”. With this characteristic, the thermistor is the element that informs the control device (electronic board processor) which modulates the boiler.✅ Secondary circuit NTC probe Allows the modulation board to detect the temperature of the water contained in the storage tank. It is fixed to the outer wall of the tank and placed in an immersion sleeve.
Sonda Temperatura NTC Caldera Compatible con Chaffoteux Compatible con Roca 6008402 190037027
✅ Boiler safety sensor compatible with BERETTA. NTC temperature sensors are highly reliable NTC thermistors packaged with insulated, thermal and waterproof polymer materials.✅ Model: NIAGARA23CFBP. Blue. NTC 10KOhm. 13mm. 1/8\"gas.✅ Original code: 190037027 60084021 R8484 20001655 R7022 ARGO, compatible with IMMERGAS, OCEAN, RIELLO, compatible with ROCA.✅ High sensitivity and fast response. Wide temperature range of use, good stability, high reliability. compatible with Baxi.
